  광 분석기기 (OPTICAL INSTRUMENTS)















스펙트로포토메타 - SPECTRA 3000

(SPECTRO-PHOTOMETER)



Spectro Photometer - SPECTRA 3000

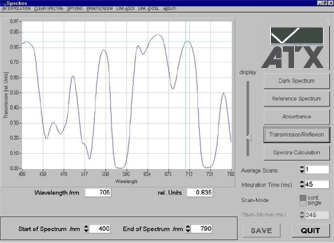

Transmission spectrum of filter glassSPECTRA 3000 (download datasheet (152kB)) is an easy to use instrument for spectral transmission measurement in the VIS region. It is specially suited for test cells of up to 10 mm optical path length and for flat materials like optical filters.



SPECTRA 3000 is offered in two versions:

The RS232 version supplied with a PC cable and a power supply. The instrument automatically detects the COM port. Thus problems during installation are avoided.

The USB version (under development) can easily be connected with an USB port of the PC and the measurement can be started immediately - a real plug and play solution. The device is bus powered.



The software package allows the measurement of spectral data as transmission and absorbance. Besides the display and management of spectra (hot links to Excel and ASCII files) further mathematical operations as first and second derivation are possible.



The optional software ATX SPECTRA color allows the measurement of color coordinates of samples (e.g. L*a*b*).

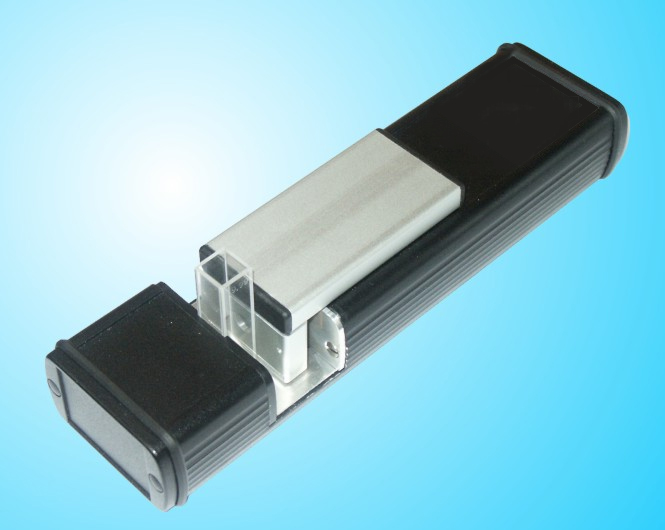

specbos3000


Convince yourself by this new type of photometer!
Easy to handle, reliable and compact.


ATX offers also a photometer for spectral transmission measurement for flat materials like optical filters
a size up to 6" x 6" - SPECTRA transmission



Specifications

Samples

Filters, test cells (1 ... 10 mm optical path)

Measuring geometry

0/0 (illumination by 0? observation by 180?

Centre height

15 mm

Measuring diameter

3 mm

Measuring time

approx. 0.05 s

Spectral range

400 ... 780 nm

Spectral resolution

9 nm

Digital spectral resolution

4.1 nm

Digital resolution

14 bit ADC

Light source

Lamp/ LED

Dispersive element

Diffraction grating

Light receiving element

128 pixel photodiode array

Operating conditions

Temperature 10 ... 40 캜
Humidity < 85 % relative humidity at 35 캜

Power supply

RS232 version: 230 VAC (115 VAC optional)/ 9 VDC
USB version: Hub powered

PC interfaces

RS232, 8N1, 38400 Bd
USB1.1 fullspeed (12Mbit/sec)

Dimensions

310 mm x 58 mm x 48 mm

Weight

550 g

Accessories (included)

PC software ATX SPECTRA for Windows 98/2000/XP/NT(only RS232)
Operation manual
RS232 version: Switch mode power supply Mainy
                       PC cable
USB version:    USB cable
Transport box



Photometric measurement  by Software: ATX SPECTRA



Measurement curves

Transmission spectrum
Absorbance spectrum



Wavelength accuracy

?0.5 nm (ASTM E275, filter BG 20, 2 mm, at 528.7 nm/ 684.3 nm)





Wavelength reproducibility

?0.2 nm (ASTM E275, filter BG 20, 2 mm, at 528.7 nm/ 684.3 nm)

Base line noise



max. 10-3 AU at 550 nm (water filled 1 cm test cell)

Base line drift

max. 2?0-3



Photometric precision

?0.002 AU (ASTM E275, D = 1, at 550 nm)



Photometric accuracy

?0.005 AU (ASTM E275, D = 0.46, at 550 nm)



Photometric linearity

0 ... 2.6 AU (ASTM E275, ND filters, at 550 nm)



Stray light

< 0.1% (ASTM E387, GG495, 4 mm, at 420 nm/ 630 nm)



Long term stability

?0,3 %/ 12 h



Temperature dependence

< 5?0-4 AU/ K (D = 0.2, at 550 nm)



Option

Kinetics mode (under preparation)





Color measurement by Software: ATX SPECTRA color



Wavelength pitch

10 nm

Illumination

C (A and D65 selectable)

Observer

2 ?(10 ?selectable)

Measuring values

Color systems X, Y, Z; L*a*b*(CIE), Luv, L*C*h*
Color differences
Jod, Hazen, Gardner (under preparation)

Precision

dE < 0.1
