UV-VIS 스펙트로메타 - SPECTRA 2200

(UV / VISIBLE SPECTROMETER)

UV-VIS Spectrometer with Internal Light Source - SPECTRA 2200

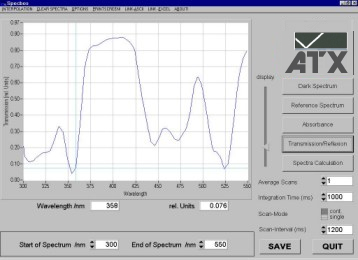

Transmission spectrum of filter BG36 SPECTRA 2200 (download datasheet (133kB)) is a fiber coupled UV-VIS spectrometer with built in UV-VIS light source (Deuterium and Halogen).
It is characterized by an excellent stray light performance and a high sensitivity.

SPECTRA 2200 is offered in two versions:

The RS232 version supplied with a PC cable and a power supply. The instrument automatically detects the COM port. Thus problems during installation are avoided.

The USB version (under development) can easily be connected with an USB port of the PC and the measurement can be started immediately - a real plug and play solution. The device is bus powered.

The software ATX SPECTRA is suited for spectra acquisition and transmission/ reflection calculations.
Single and continuous measurement modes as well as averaging are possible. Data can easily be exported to Excel spread sheets and to ASCII files.

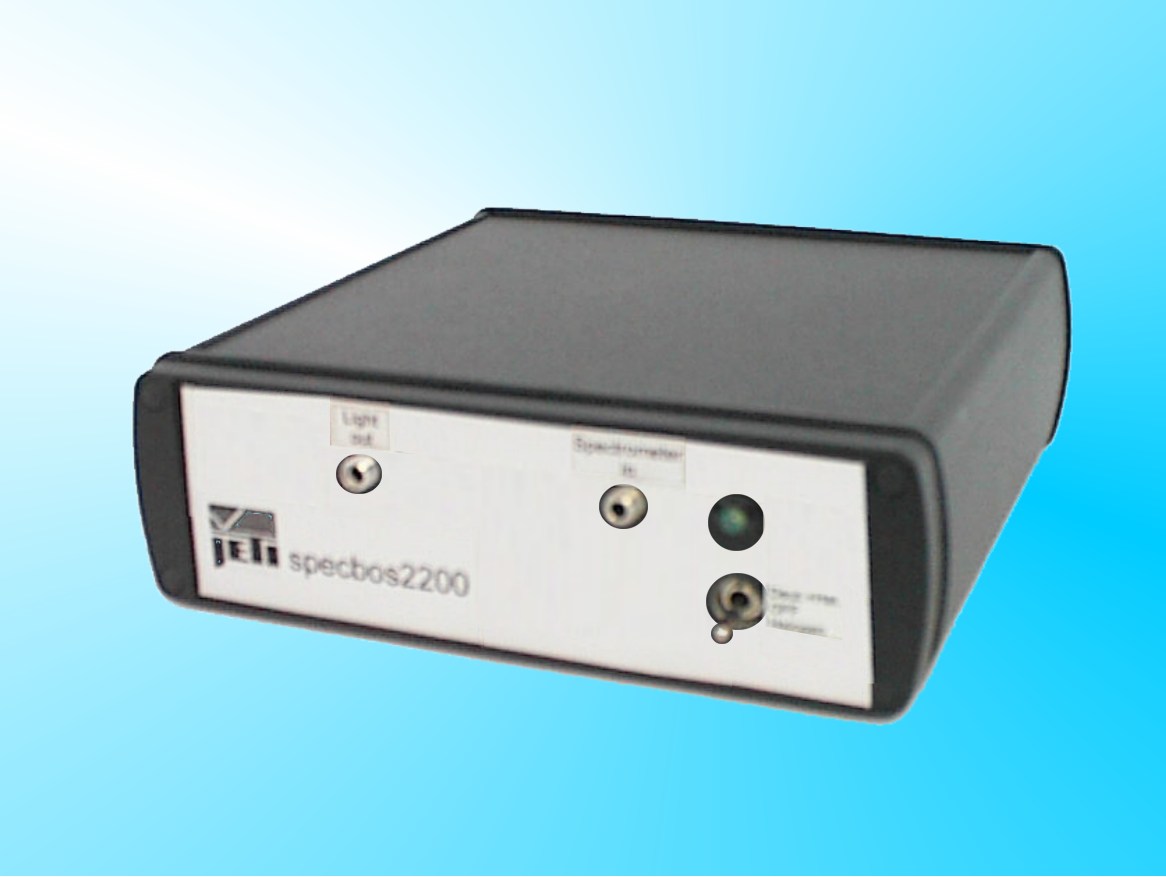

specbos2200

The device can be delivered with various fiberoptic measuring heads, e.g. dip & reflection probes as well as a transmission measuring set up.

Specifications

Applications

Measurement of reflection and transmission spectra, e.g. of solid surfaces, filters and liquids

Spectral range

250 nm ... 500 nm

Spectrometer slit

100탆 fiber (optional 50 탆), NA0,22

Light output / spectrometer input

SMA

Spectral resolution

9 nm ( 6 nm with 50탆 fiber ) FWHM

Digital spectral resolution

4.1 nm

Digital resolution

14 bit ADC

Wavelength accuracy

?0.5 nm (ASTM E275, filter BG 20, 2 mm, at 528.7 nm/ 684.3 nm)

Wavelength reproducibility

?0.2 nm (ASTM E275, filter BG 20, 2 mm, at 528.7 nm/ 684.3 nm)

Stray light

< 0,1% (at 400 nm with GG 495)

Sensitivity

typ. 1.3?0¹⁴ counts/Ws (550 nm)

Integration time

10 ... 5000 ms

Shutter

Internal motor driven by software

Spectrometer
Grating
Detector

Holographic
Photodiode array

Light source

Halogen and/or Deuterium lamp

Power supply

RS232 version: 230 VAC (115 VAC optional)/ 9 VDC
USB version: Hub powered

Interfaces

RS232, 8N1, 38400 Bd
USB1.1 fullspeed (12Mbit/sec)

Dimensions

170 mm x 175 mm x 55 mm

Weight

1000 g

Enclosed accessories

PC software ATX SPECTRA for Windows 98/2000/XP/NT(only RS232)
Operation manual
RS232 version: Switch mode power supply Mainy
PC cable
USB version: USB cable
Transport box

Software: ATX SPECTRA
