측정 스펙트로메타 - SPECTRA 2100
(REFLECTION SPECTROMETER)
Miniature VIS

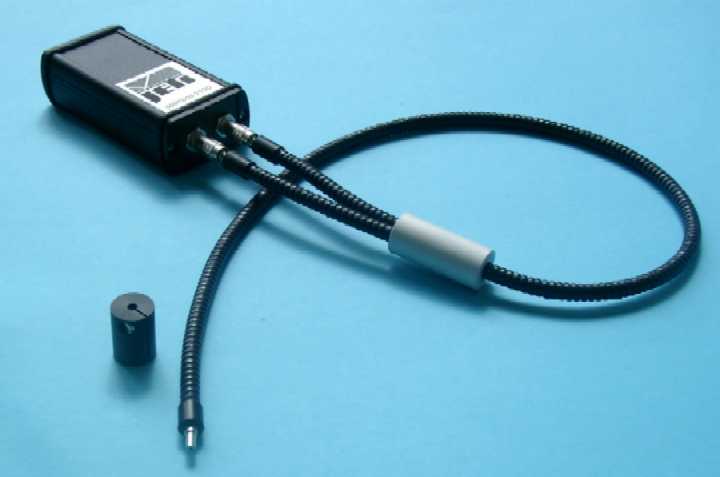

Spectrometer for Reflection Measurement - SPECTRA 2100
SPECTRA 2100 (download
datasheet (122kB)) is a fiber coupled VIS spectrometer with a reflection
measuring head. The main application is the stationary quality control of
reflecting products like mirrors. The device is characterized by an excellent
straylight performance, high sensitivity and small dimensions.
SPECTRA 2100 is offered in two versions:
The RS232 version supplied
with a PC cable and a power supply. The instrument automatically detects the COM
port. Thus problems during installation are avoided.
The USB version (under development) can
easily be connected with an USB port of the PC and the measurement can be
started immediately - a real plug and play solution. The device is bus
powered.
The software ATX SPECTRA is suited for spectra acquisition and
reflection/absorbance calculations. Single and continuous measurement modes as
well as averaging are possible.
Data can be exported to Excel spread sheets
and to ASCII files.
|
|
The device can be delivered with
customer specific reflection measuring heads, e.g. separated illuminating and
receiving fiber. |
Specifications
|
Applications |
Measurement of reflection and
transmission spectra, e.g. of mirrors |
|
Measuring probe |
Fiber optic bundle (6outer illuminating
abd one central receiving fiber) |
|
Spectral range |
380 nm ... 760 nm |
|
Input |
ST |
|
Spectral resolution |
9 nm (6 nm with 50 탆 fiber)
FWHM |
|
Digital spectral resolution
|
4.1 nm |
|
Digital resolution |
14 bit ADC |
|
Wavelength accuracy |
?nbsp;0.5 nm (ASTM E275, filter BG 20, 2
mm, at 528.7 nm/ 684.3 nm) |
|
Wavelength reproducibility
|
?0.2 nm (ASTM E275, filter BG 20, 2 mm,
at 528.7nm/ 684.3 nm) |
|
Photometric reproducibility
|
?0.005 AU at 550 nm |
|
Stray light |
< 10-3 (ASTM E387, GG 495,
2 mm, at 430 nm) |
|
Integration time |
10 ... 5000 ms |
|
Spectrometer
Grating
Detector
|
Holographic
Photodiode array
|
|
Light source |
Lamp + blue LED |
|
Power supply |
RS232 version: 230 VAC (115 VAC
optional)/ 9 VDC
USB version: Hub powered |
|
Interfaces |
RS232, 8N1, 38400 Bd
USB1.1 fullspeed
(12Mbit/sec) |
|
Dimensions |
120 mm x 58 mm x 34 mm
|
|
Weight |
200 g |
|
Enclosed accessories |
PC software ATX SPECTRA for Windows 98/2000/XP/NT(only RS232)
Operation
manual
RS232 version: Switch mode power
supply Mainy
PC cable
USB version: USB
cable
Transport box |
Software: ATX SPECTRA
|
