  광 계측기기 (OPTICAL INSTRUMENTS)













RGS-2 SPECTRORADIOMETER









Features include:



200 nm to 1100 nm Coverage



2 nm Resolution



10-5 Stray Light Rejection



Complete Radiometric Software



USB Interface

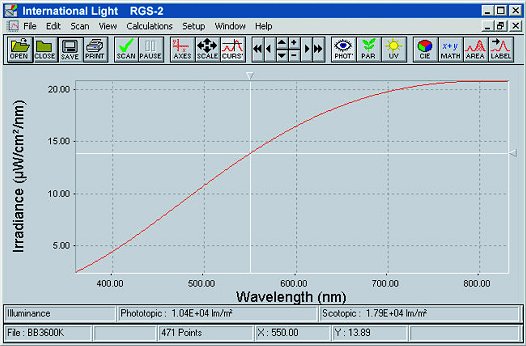

 Sample Screenshot of Radiometric Software

 Measures:

  • Irradiance
  • Illuminance
  • Radiance
  • Luminance
  • Chromaticity







 SPECIFICATIONS:

IL RGS-2 UV-VIS-NIR Spectroradiometer

The RGS-2 is a research grade spectroradiometer featuring 2 gratings for optimal coverage of the spectrum between 200nm and 1100nm. Its integrated internal optical filter wheel aids the RGS-2 to achieve significantly better than 1 0-4 stray light rejection over its entire working range. The spectroradiometer has a working resolution of better than 2nm with the included 250 micron entrance slit and optional fiber optic input assemblies. The RGS-2 also includes 100 micron and 500 micron slit assemblies for higher resolution or higher throughput applications.

Optical Design: Classical Czerny-Turner with internal order sorting filters and multiple gratings on automated turret.



Focal Length

: 190mm

Spectrometer aperture

: f/4.0

Gratings

: 600g/mm holographic optimized at 300nm

: 600g/mm holographic blazed at 500nm

: automatically exchanged via software

Operating Range

: 200nm to 1100nm

Resolution

: Better than 2nm with 250µ fiber optic input

Stray light rejection

: > 10- 44

Wavelength repeatability

: +/- 0.1nm

Wavelength accuracy

: +/- 0.3nm

Detector

: UV enhanced 10mm x10mm Si photodiode

Detection limits

: 0.3pA to 10µA

: Spectrometric limits dependent on input optics

Input optics

: 100µ, 250µ, and 500µ fixed 10mm long slits

: Fiber optic interface to multiple input  accessories  (optional)

Internal filter wheel 4 position

: 3 filters one shutter

Software

: Full radiometric/photometric software for controlling hardware   and data analysis. Windows 98, 2000, and  XP compatible.   (Not compatible with Windows 95 or  Windows NT)

Communications Interface

: USB

Power

: 100-240VAC 50/60Hz.

Dimensions

: 18" W x18" Lx 12" H (45cm x 45cm x 30 cm)

: 25lbs 11.5kg
