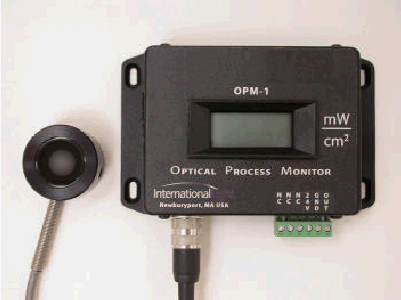

REMOTE DETECTOR

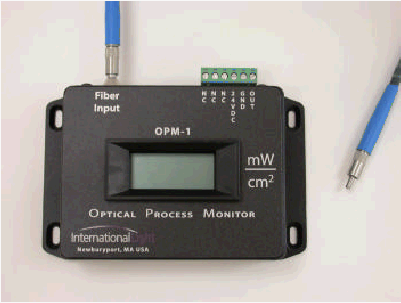

FIBER COUPLED

The OPM Series optical process monitors are designed for on-line monitoring of optical intensities in real-time applications. The instruments are available in remote detector or fiber-coupled versions. The remote detector version accepts an industrial connectorized variant of the International Light silicon detector line, including all compatible filters and diffusers for great application flexibility. The fiber-coupled version is configured with an internally mounted filter and detector allowing the optical pick-up to be placed in environmental harsh or sensitive environments.

Available Features for Both Versions

• 4 ½ Digit direct readout, calibrated in specified optical units

• 4 – 20 mA current loop output interfaces to standard programmable logic controllers (PLC’s)

• 0 – 2 VDC output

• Continuity alarm for broken current path

• 24 VDC operation

• Rugged die-cast aluminum housing
