RADIATION
/ CONVECTION HEAT FLUX SENSOR (RC-01-ATX)
RC-01-ATX
RADIATION / CONVECTION (RADCON) HEAT FLUX SENSOR
The RC-01-ATX is a heat flux and temperature
sensor for study of radiation, convection and heat transfer in ovens, furnaces,
baking and drying processes. The measurement result is often used as a
characterisation of a “fingerprint” of oven settings, making it possible to
compare or reproduce oven settings.
-
-

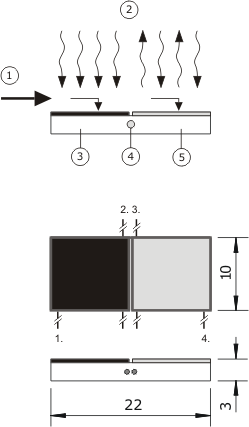

- Figure 1.
RC-01-ATX sensor
dimensions. (22x10x3 mm)
- 1 convective heat
- 2 radiative heat
- 3 heat flux sensor with black absorber
(emission around 0.85), which measures convective plus radiative
heat.
- 4 temperature sensor (to measure sensor
temperature)
- 5 heat flux sensor with gold reflector
(emission depending on radiation spectrum, emission coefficient in the infra-red
smaller than 0.05), which measures convective heat only.
- 1., 2. wiring of absorbent heat flux
sensor
- 3., 4. wiring of reflective heat flux
sensor
- 5., 6. wiring of type K
thermocouple
- The ambient air temperature sensor is not
included in the picture.
-
- Dimensions of RC-01-ATX-M, including the heat
sink are 65x65x13 mm.
-
INTRODUCTION
- RC-01-ATX consists of two heat flux sensors, the
one covered by a gold reflector (only sensitive to convective transfer), the
other by a black absorber (sensitive to radiative as well as convective
transfer). A temperature sensor is integrated below the reflector.
- The sensor can be delivered built into special
heat sinks. Normally this is made of nickel; the most common type is
RC-01-ATX-M.
- In case of RC-01-ATX-M, the sensor is supplied with
an external temperature sensor to determine the surrounding air temperature. By
measuring the heat fluxes, sensor temperature and surrounding air temperature
one is able to determine the local heat transfer coefficients.
-
SUGGESTED USE
-
Drying kilns, baking ovens
-
Continuous belt dryer
MORE INFORMATION/OPTIONS
- Alternative designs:
LICHTZEN AE / AITNIX is specialised in heat
flux sensor design, and can offer sensors with modified dimensions and
specifications.
- RC-01-ATX can be equipped with water
cooling.
RC-01-ATX GENERAL SPECIFICATIONS
- Heat flux measurement: 1 black (absorber), 1
gold (reflective)
-
Temperature measurement: type K
thermocouple
-
Sensitivity: 3 µV/Wm-2
-
Expected accuracy: within +/- 10 %
-
Temperature sensor: type K thermocouple
-
Response time: 0.5 s (1/e)
-
Temperature range: 0-250 °C
- Heat flux range: depends on sink temperature,
typically 10kWm-2
-
CE certification: RC-01-ATX is CE certified
RC-01-ATX HEAT SINKS
- RC-01-ATX-M: RC-01-ATX on
Nickel Heat sink with ambient air temperature sensor
|
