TYPE HEAT FLUX SENSOR (BS-01-ATX)
BS-01-ATX
BELT HEAT FLUX
SENSOR
The BS-01-ATX is a large-area flexible heat
flux and temperature sensor for in-situ evaluation of the insulation value of
pipes. With years of experience put into the design, it is the “standard” for
pipe insulation testing for subsea oil pipes.
-
-

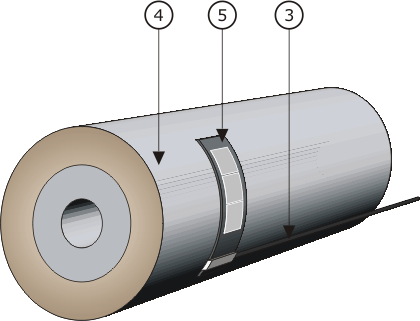

- Figure
1. BS-01-ATX on pipe during in service
testing.
- 3 Cabling
- 4 Pipeline to be tested
- 5 BS-01-ATX mounted
on pipeline (cover and springs for fixation are not shown)
-
-
-
-

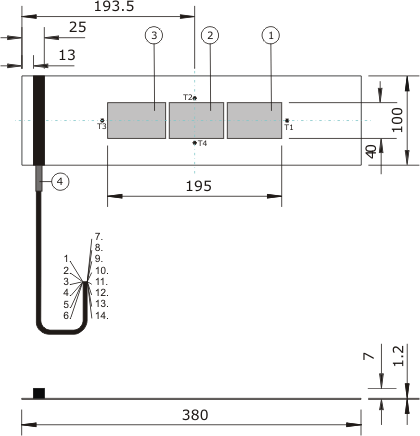

- Figure
2. BS-01-ATX
dimensions.
- 1 to 3 individual heat flux sensors (1, 2,
3)
- T1 to T4 temperature sensors
- Cabling (4)
- Wiring code:
- 1 to 6 heat flux sensor
wiring
- 7 to 14 temperature sensor
wiring
- dimensions in mm.
INTRODUCTION
- The BS-01-ATX contains three heat flux sensing
areas and four integrated temperature sensors. Originally designed for
“simulated service conditions testing” for subsea oil pipelines, it can
withstand high hydrostatic pressures up to 110 bar and is (contrary to other
sensors) completely water-tight. The main development effort has gone into the
prevention of penetration of moisture into the sensor at high pressures. With
sensors not specifically prepared for the high pressure, penetrated moisture
will on the long term lead to instability of the sensor
calibration.
- The sensor is provided with a mounting set for
easy fixation, consisting of a cover and two springs.
-
- BS-01-ATX was originally designed by TNO TPD. Scientific
publication about this sensor: D. Haldane (Heriot Watt University), F. van der
Graaf, A.M. Lankhorst (TNO TPD): A direct Measurement System to obtain the
Thermal Conductivity of Pipeline Insulation Coating Systems under Simulated
Service Conditions.
-
SUGGESTED USE
- General pipeline insulation
testing
- Simulated service testing for subsea
pipelines
MORE
INFORMATION/OPTIONS
- Alternative
designs: LICHTZEN AE / AITNIX is
specialised in heat flux sensor design, and can offer sensors with modified
dimensions and specifications.
BS-01-ATX SPECIFICATIONS
-
Heat flux measurement: 3 separate heat flux
sensors
-
Temperature measurement: 4 type K
thermocouples
-
Flexibility: 30 mm minimum radius
-
Sensitivity (nominal): 50 µV/Wm-2
-
Expected accuracy (to 50°C): within 2.5 %
- Temperature coefficient of the calibration
coefficient: - 0.17 %/°C
-
Temperature range: 0-100 °C
-
Pressure range: 1-110 bar
- Cover dimensions:
140 x 360 mm
|
