specifically designed for conveyorized processes. Thermocouples are
attached to a test PCB allowing the datalogger, protected by its heat shield, to
record temperatures from different areas and electronic components. Once
captured, the data can be downloaded to the PC and analyzed. Easy to read
displays allow quick confirmation of process parameters.
-
Compact
datalogger can pass through the smallest of processes.
-
Separate heat
shield maximizes protection and cool-down cycle.
-
4 or 6 channel
system means the Neptune is capable of profiling any PCB
-
Rapid data
download is essential for long runs
-
Memory lock
feature prevents accidental data erasing
-
Profile Central
PC software provides rapid analysis with additional guidance for novice
users


Neptune's
powerful suite of software tools sets new standards in ease of use and
flexibility. Profile Explorer allows you to search, sort, and organize your

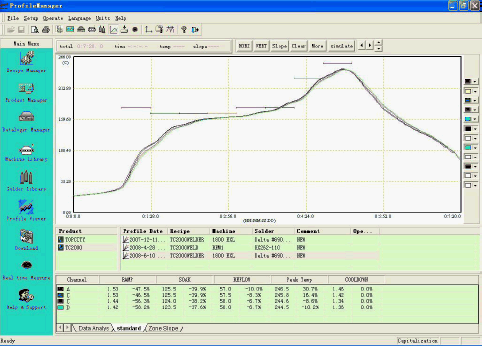

profile data. Analyze, compare, and print your profiles with the Profile Viewer.
Process Checker automatically evaluates profile data against set limits. Process

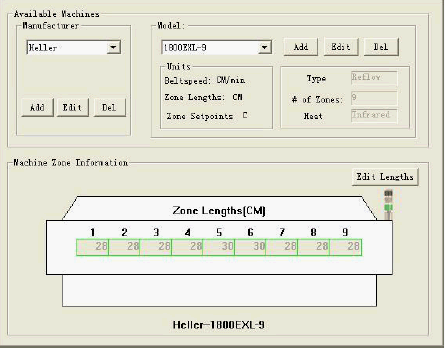

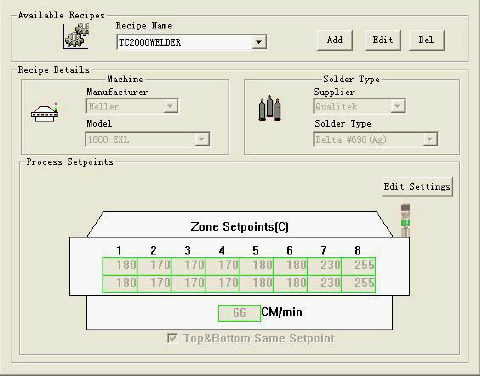

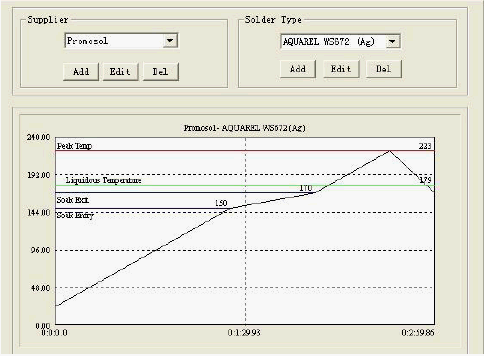

Library allows you to define libraries for machine settings, solder paste
specifications, and wave solder parameters to allow you to effectively manage
your soldering process and equipment.
Neptune is suited
for use in reflow & wave soldering processes, vapor phase ovens, glue curing
applications, and conformal coating applications.

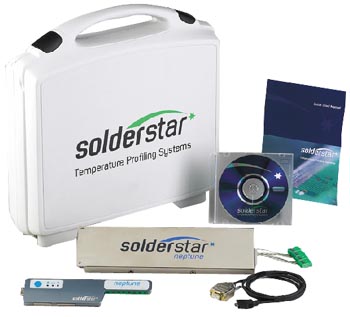

The following
equipment is supplied as standard with all Neptune products:
-
Robust and
compact datalogger
-
Rapid cool
heat-shield
-
'Profile
Central' - PC Software supplied on CDROM
-
Type-K
Thermocouples & high speed download cable
-
Calibration
certificate and hardcopy user manual
-
Convenient
carrying case
Now available for
the solderstar Neptune is heatshield transporter to carry the Neptune securely
through reflow ovens equipped with pin edge conveyors. It adjusts to the precise
width of your PCB, from 140mm to 450mm.
|
