TIDAS-MSP 800 MICROSCOPE SPECTROPHOTOMETER

  • Adaptation to every UV microscope on the market with a phototube
  • Modern diode array spectrometer for a wavelength range UV-VIS-NIR with various  resolutions and sensitivities. A photomultiplier tube is available as well.
  • Fixed straight adapters and beam splitters for a variable spot and simultaneous coupling of the spectrometer and a tv-camera
  • Fibre optics coupled light source for UV- VIS up to NIR range
  • State of art software under Windows NT. Upgrades for the old ZEISS MPM-systems are available
  • Imaging software (e.g. ZEISS AxioVision) for simultaneous archiving of images and spectra
  • The spectrometer systems can also be used for laboratory work with cell holders, immersion probes and other measuring units.

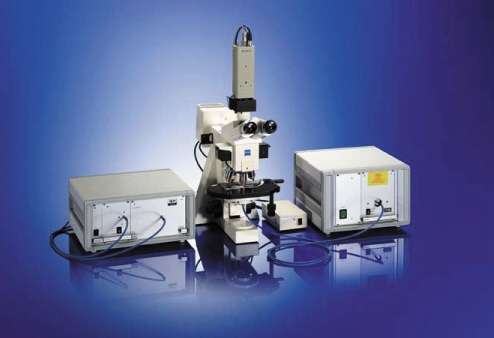

       Image shows minimal configuration with microscope Axiotech,

spectrometer TIDAS and light source CLX-UV





 TIDAS-MSP 800



 MICROSCOPE (recommendation)

Axioskop 2

Axiotech

Each with UV-objectives

                                 Custom dependent accessories and options





 COMPUTER (recommendation)

Minimal configuration
Control unit
350 MHz PIII or higher
min. 64 MB RAM (max.128 MB)
monitor 17“ (19“)
Operation System WIN NT or WIN 98



Spectrometer

TIDAS-UVNIR/100-1

TIDAS-cassette fits into Microscope-control-unit

Spectral range 190 - 1010 nm, 1024 Pixel, 0,8 nm/Pixel,

fast 16 Bit electronic, integration time: 12 ms -10 s

Item-no. 81 654 06





Housing for Microscope-control-unit

With integrated power supply for spectrometer cassette

electronics for filter changer and shutter 24V

(replaces MSP 65)

Item-no. 81 650 14



Light source Xenon lamp CLX-UV

with filter for observation mode

Item-no. 81 650 52



CLX-UV housing with power supply

for CLX-cassette
Item-no. 81 650 57



PCI4SPC-RS422
PCI- Interface card, for PC RS422-link.

Item-no. 51 553 94



L-RS422IEEE
Interface cable RS422/IEEE, length 2m.

Item-no. 51 553 96



Fibre guide for spectrometer MF-1ES1EJ-1

Diameter: 600µm, length: 1,0 m, SMA/J&M-connector

Item-no. 51 600 13



Fibre guide for light source MF-1ES1EJ-2

Diameter: 600µm, length: 2m, SMA/J&M-connector

Item-no. 51 600 15





 ACCESSORIES AND ADAPTERS
Backward illumination for measuring field
Item-no. 81 654 38


MIC-Out 3
Decoupling optical system with beamsplitter for camera and spectrometer.

Adapter for optical fibre, variable rectangular diaphragm.

Item-no. 51 598 92


Tubus quartz lens incl. reconversion of the microscope
Item-no. 81 654 37


                                 Motorised filter changer for transmission with shutter and
                                 intensity control
                                 Item-no. 51 598 84

                                 MIC-In 2
                                 Fibre adapter for transmission set-up.
                                 Connects microscope with light source
                                 Item-no. 81 654 36



 SOFTWARE
SpectraForensic

Basic SW-package, containing Spectralys, SpectrBib and SpectraCol

Item-no. 51 596 99 (WIN-NT/95/98)



 OPTIONS
TV camera with CCD and video card
TV software module TIDAS/AxioVision
Item-no. 81 654 39



Fluorescence/Darkfield
Spectrometer TIDAS MMS-VIS/100-1
with housing and cable to microscope control unit
Item-no. 89 001 15



CMU-PCI4T8 (replaces PCI4SPC-RS422 interface)
PCI- Interfacecard, for PC RS422-link.

Incl. controller- and memory-unit 4Mbyte RAM.

Item-no. 51 553 95



Fibre guide for spectrometer MF-1ES1EJ-1

Diameter: 600µm, length: 1m, SMA/J&M-connector

Item-no. 51 592 02



Fibre multiplexer unit for 2 positions (Trans/Fluor)
Item-no. 81 654 35



 SERVICE
                                 System integration and test, quality check with protocol
                                 Installation and training
                                 Item-no. 88 670 01
