TIDAS-MSP 400 MICROSCOPE SPECTROPHOTOMETER

Adaptation to every microscope on the market with a phototube
Modern diode array spectrometer for a wavelength range UV-VIS-NIR with various resolutions and sensitivities. A photomultiplier tube is available as well.
Fixed straight adapters and beam splitters for a variable spot and simultaneous coupling of the spectrometer and a TV-camera
Option for fibre optics coupled light source for visible range
State of art software under Windows NT. Upgrades for the old ZEISS MPM-systems are available
Imaging software (e.g. ZEISS AxioVision) for simultaneous archiving of images and spectra
The spectrometer systems can also be used for laboratory work with cell holders, immersion probes and other measuring units.

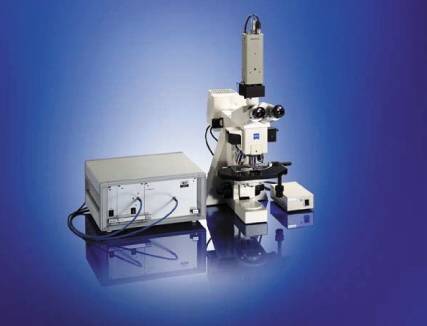

Image shows minimal configuration with microscope Axiotech, spectrometer TIDAS

TIDAS-MSP 400 (replaces MPM 400)

MICROSCOPE (recommendation)

Axioskop 2

Axiotech

Custom dependent accessories and options

COMPUTER (recommendation)

Minimal configuration
Control unit
350 MHz PIII or higher
min. 64 MB RAM (max.128 MB)
monitor 17“ (19“)
Operation System WIN NT or WIN 98

Spectrometer

TIDAS-UVNIR/100-1

TIDAS-cassette fits into Microscope-control-unit

Spectral range 190 - 1010 nm, 1024 Pixel, 0,8 nm/Pixel,

fast 16 Bit electronic, integration time: 12 ms -10 s

Item-no. 81 654 06

Housing for Microscope-control-unit (replaces MSP 65)

With integrated power supply for spectrometer cassette

electronics for filter changer and shutter 24V

Item-no. 81 650 14

PCI4SPC-RS422
PCI- Interface card, for PC with RS422-link.

Item-no. 51 553 94

L-RS422IEEE
Interface cable RS422/IEEE, length 2m.

Item-no. 51 553 96

Fibre guide for spectrometer MF-1ES1EJ-1

Diameter: 600µm, length: 1,0 m, SMA/J&M-connector

Item-no. 51 600 13

Backward illumination for measuring field
Item-no. 81 654 38

                                 MIC-Out 3
                                 Decoupling optical system with beamsplitter for camera and SPECTROMETER

Adapter for optical fibre, variable rectangular diaphragm.

Item-no. 51 598 92

                                 Motorised filter changer for transmission with shutter and
                                 intensity control
                                 Item-no. 51 598 84

SOFTWARE
SpectraForensic

Basic SW-package, containing Spectralys, SpectrBib and SpectraCol

Item-no. 51 596 99 (WIN-NT/95/98)

OPTIONS
TV camera with CCD and video card
TV software module TIDAS/AxioVision
Item-no. 81 654 39

SERVICE
                                System integration and test, quality check with protocol
                                Installation and training
                                Item-no. 88 670 01
