전자식
UV안정기 (ELECTRONIC
UV BALLAST) / 고압수은UV램프, 메탈할라이드
램프용

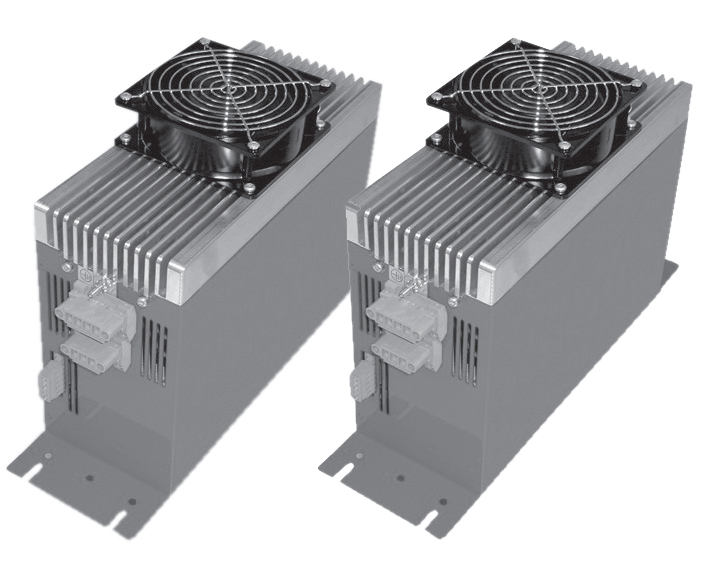

PHASER
6/450 (6 KW)
PHASER
7/450 (7 KW)
FEATURES
|
|
|
Universal use in the nominal
power class of 3.0 – 6.0
kW (Phaser 6) / 4.0 - 7.5
kW (Phaser 7),
this
means ONE power supply drives
different types of UV-lamps
in the above named power
class
|
|
Step less and quick adjustment
of UV-lamp power, e.g. for
step less adjustment of
UV-power relative to the
speed of a printing machine;
or with interrupted process
(e.g. quick power pulsing);
or to
adjust
UV-power relative to lamp
ageing.
|
|
To be placed in a cabinet
or similar cooled housings,
with max. temperature inside
40° C
|
|
Constant wattage UV-lamp
output according to power
settings
|
|
Not influenced by mains
voltage fluctuation
|
|
Wide range of 3-phase mains
voltages from 379 to 509
V, 50 and 60 Hz, including
missing
phase
detection
|
|
Controlled by DC 0...10
V
|
|
Output is protected against
ground faults, overload
and short circuits, additionally
open circuit
causes no problems
|
|
Easy to install and less
wiring needed, no phase
angle correction and no
external ignitor needed
|
|
Lighter and in many cases
smaller as a conventional
power supply
|
|
In accordance to DIN VDE
0160 and other European
and world wide standards
(IEC)
|
|
CE
sign, EMC according to EN
55011, group I, class A
(industrial areas)
|
TECHNICAL
SPECIFICATIONS
|
|
Output
Characteristics
|
PHASER
6 / 450
|
PHASER
7 / 450
|
Power
range
|
0.6
- 6.0 kW
|
0.75
- 7.0 kW
|
Max.
lamp voltage
|
100
- 450 V
|
100
- 450 V
|
Max.
lamp current
|
1.5
- 15 A
|
1.8
- 18 A
|
|
|
|
Input
Requirements
|
|
|
Power
supply voltage
|
376
- 509 V
|
376
- 509 V
|
Power
line current
|
3
x 15 A (at 6.0 kW)
|
3
x 17 A (at 7.5 kW)
|
Power
line frequency
|
50
- 60 Hz
|
50
- 60 Hz
|
|
|
|
Electrical
Properties
|
|
|
Electrical
efficiency
|
91
- 93%
|
92
- 94%
|
Power
factor
|
0.70
|
0.75
|
Power
line loading
|
Symmetrically
on 3 Phases
|
Symmetrically
on 3 Phases
|
Connection
|
L1,
L2, L3, PE
|
L1,
L2, L3, PE
|
Ambient
temperature
|
0
- 40° C (32 to 104 F)
|
0
- 40° C (32 to 104 F)
|
|
|
|
Physical
Properties
|
|
|
Dimensions
(LxWxH)
|
400
x 125 x 270 mm
|
400
x 125 x 270 mm
|
Weight
|
14
kg
|
15
kg
|
|
|
|
Notice
: Specifications
subject to change without
notice.
|
