전자식
UV안정기 (ELECTRONIC
UV BALLAST) / 고압수은UV램프, 메탈할라이드
램프용

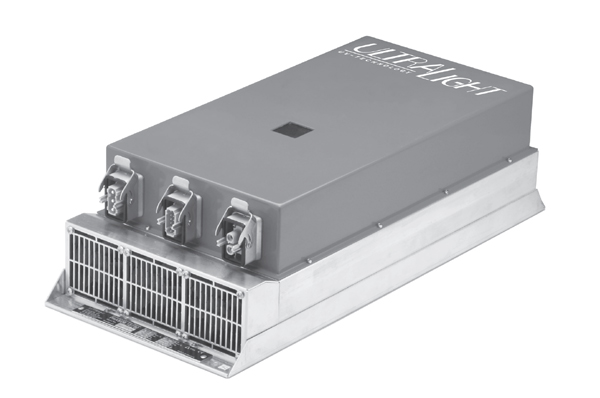

PHASER
12/ 700 (12 KW)
|
FEATURES
|
|
|
|
|
Compact design, minimum
space requirements, light
weight. Easy Installation
by one person only
|
|
|
No control cabinet required,
little wiring effort, short
circuit proof, short to
earth proof
|
|
|
Compensation of mains voltage
fl uctuations. Operates
in industrial mains installations
with standard
fault current breaker (FI)
|
|
|
Symmetrical power line loading
on 3 phases
|
|
|
For UV-Lamps with power
up to 12.0 kW, lamp current
up to 30 A, lamp voltage
up to 700 V
|
|
|
Operation of 1 - 3 standard
lamps connected in series
|
|
|
Optimized ignition properties
for all lamps
|
|
|
No dependence on lamp cable
(type, shielding, length
etc.)
|
|
|
Monitoring of operation
and fault-state: 3 LEDs
and a 7-segment display,
as well as
PC-interface (digital
output)
|
|
|
Selection and tuning of
operation modes and parameters
via PC-interface
|
|
|
Fast pulse operation: rise
time < 2 ms
|
|
|
|
|
TECHNICAL
SPECIFICATIONS
|
|
|
|
Output
Characteristics
|
|
|
Power
range
|
0.2
- 12.0 kW
|
|
Max.
lamp voltage
|
700
V
|
|
Max.
lamp current
|
30
A
|
|
Max.
cable length to lamp
|
20
m
|
|
|
|
|
Input
Requirements
|
|
|
Power
supply voltage
|
376
- 509 V
|
|
Power
line frequency
|
48
- 62 Hz
|
|
|
|
|
Electrical
Properties
|
|
|
Electrical
efficiency
|
≥
95%
|
|
Power
factor
|
>
0,80
|
|
Power
line loading
|
Symmetrically
on 3 Phases
|
|
Lamp
current shape
|
Trapezoidal
|
|
Lamp
ignition
|
Integrated
HF-Ignition
|
|
Conformity
with standards
|
IP54,
EMV EN55011 degree A
|
|
|
|
|
Physical
Properties
|
|
|
Dimensions
(LxWxH)
|
570
x 254 x 160 mm
|
|
Weight
|
21
kg
|
|
|
|
Notice
: Specifications
subject to change without
notice.
|
