  산업용 로봇 (INDUSTRIAL ROBOT)





RX 60CR  |  RX 90CR  |  RX 130CR  |  RX 170CR  |  TX 40CR  |  TX 90CR  |














RX 90CR Clean Room ROBOT

RX90CR (standard reach)



Home Page

클린룸 로봇시스템의 특징 (FEATURES)

클린룸 로봇시스템의 장점 (BENEFITS)

 - Subclass 1 (M1) cleanliness rating

- 분진의 최소화 (Minimal particulate emission)

 - 최소 설치면적 (Small footprint)

- 미세부의 핸들링을 위한 고정밀도 (High precision for   delicate component handling)

 - 광역의 작업반경 (Wide hemispherical    work envelope)

- 고정도 및 고반복정도 (High accuracy & repeatability)

 - Floor, wall & ceiling mounting

- One RXCR replaces several manipulators

 - Arm integral casing (IP65)

- 신뢰성의 입증 (large installed base)



- 월등한 작업처리를 위한 고속의 성능 (High speed for    superior throughput)









 TECHNICAL SPECIFICATIONS

 ROBOT MODEL

: RX 90CR

: RX 90LCR

 - 작업반경 (Reach at wrist)

: 985 mm

: 1185 mm

 - 가반하중 (Norminal loald capacity)

: 6 kg

: 3,5 kg

 - 최대가반하중 (Maximum  load capacity)

: 12 kg

: 9 kg

 - 반복정도 (Repeatability (ISO 9283))

: +/- 0,02 mm

: +/- 0,025 mm

 - 자유도 (Degrees of freedom)

: 6 Axes

: 6 Axes

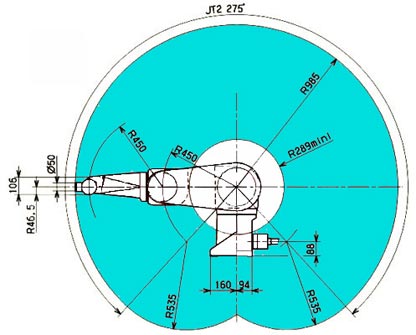

 RX 90CR 작업반경 (WORK ENVELOPE)

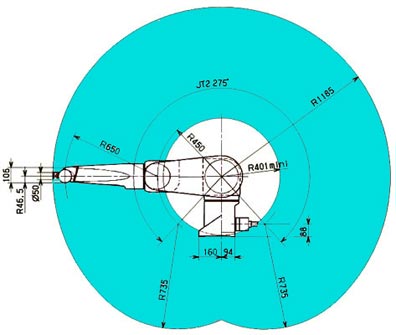

RX 90LCR 작업반경 (WORK ENVELOPE)
