  FA SENSOR















UV 조도센서

(UV Luminescence Sensors)





UVX-300




Luminescence Seonsors



UV SENSORS TARGET DETECTION FOR AUTOMATION APPLICATIONS

Best of Sensors Expo

New UV sensor identifies the presence of grease, glue, labels, wood, thread, rubber, paint, UV ink, UV crayon, and more. Confirm manufacturing processes more reliably than vision systems that cost ten times more. The UVX 300 luminescence sensor with patented technology is the clear choice because:



  • Unique numerical display lets you see the intensity of each reading. Now it's easy to refine processes and hysteresis.
  • 3 to 6 times the range of any competing sensor. Won't get bumped or dirtied by target.
  • Only UV sensor with both auto-teach and manual calibration. Easy for low-skill operators, but able to be finely tuned.
  • Adjustable UV light projection and high resolution allow pin-head size detection.
  • Fast and convenient integration. In one sensor you get both analog and discrete output, auto-detect for PNP/NPN.
  • Smallest and fastest on the market.



 APPLICATIONS FOR UV SENSORS IN MANUFACTURING



The most UV-adoptive industries are automotive and packaging, representing 60 and 20 percent of the UV sensor applications, respectively.

In 80 percent of cases brought to EMX’s attention, UV technology is enabling applications that could not be done using other sensor and vision technologies, because they had trouble reliably detecting the presence of their targets, or because the cost could not be justified.

Overall, UV sensor applications cover a wide range of industries. EMX has released a list of manufacturing applications that are using or considering using UV luminescence sensors.



  • Automotive
    Inspecting a muffler pipe for the presence of a copper fitting. Detecting the presence of a UV-curable gasket. Verifying correct assembly of connecting rod caps. Detecting operator ID tape on ignition wire. To detect rivets marked with UV material. To make a screwdriver unit activate when a UV mark is set on a connecting rod.

  • Packaging
    Detecting the presence of: glue on cartons, surgical staple cartridges, glue on a paperboard background, a patch on a web.

  • Adhesive Tape
    Measuring the amount of adhesive sprayed on a roll of tape. When a nozzle gets clogged, the sensor provides feedback leading to an alarm condition.

  • Electronics Assembly
    Detecting the presence of tape on wiring harnesses.

  • Food Packaging
    On ring-tab cans, detecting a transparent seal that prevents the seam from rusting. Detecting the presence of straws attached to juice box containers, when the orientation of the straw is too variable for a vision system. To detect date codes on packages.

  • Pharmaceutical
    Detecting the presence of a plastic tamper-proof seal on a bottle.

  • Textile
    Detecting the presence of a fluorescent thread, to verify that a seam has been sewn. Detecting yarn adhesive on fabric weavers.

  • Furniture Making
    Detecting the presence of excess glue in a joint of wood furniture.

  • General Industrial
    Detecting the presence of paint on a product, lubricant on bearings. To detect clear coatings on wired parts.

  • Lumber
    Inspecting lumber for the proper coating of clear fungicide. Grading and sorting lumber prior to cutting and trimming.

  • Cracks and Leaks
    Used as tracers to find leaks of oils, refrigerants.

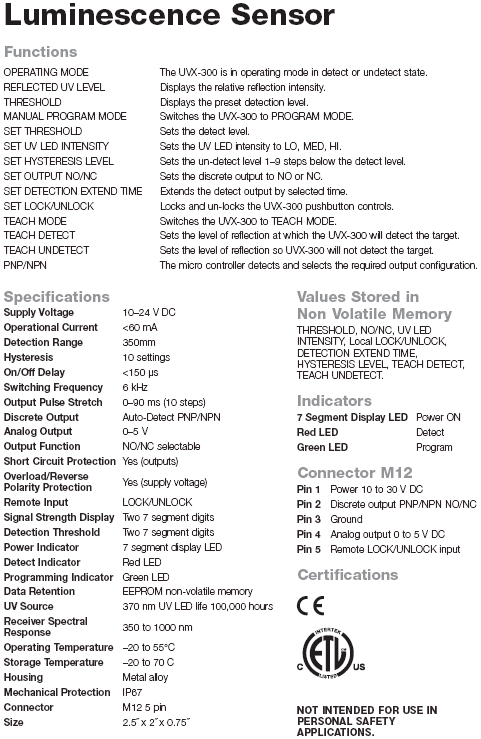

 FUNCTIONS AND SPECIFICATION
