AIR
STANDARD GAGE : SPINDLE TYPE
Measuring System for Taper Measuring of HSK Spindle Tapers according to DIN
69893
|
 Required Measuring and Control Device with Accessories
|
|
|
Description |
|
Part No. |
|
Qty. |
|
Control Device MSG-32-M1/2
channels |
|
650-2100-000000 |
|
1 |
|
Operating Box WT
MSG-2 |
|
711-0003-000002 |
|
1 |
|
Service Unit 1/4", Filter, Pressure Gauge |
|
700-0001-000001 |
|
1 |
|
Air Buffer, volume 10
Liter |
|
700-0002-000000 |
|
1 |
|
Quick-change coupling 1/8" |
|
700-0003-000001 |
|
2 |
|
Sliding Valve
Z04.1 |
|
700-0004-000001 |
|
1 |
Attributes:
d1, d2 (absolute
or deviation in µ),
taper angle deviation in µ or º
|
|

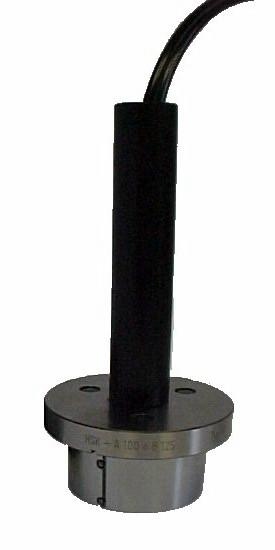

Taper Air-jet Mandrel
|
|
|
Taper air-jet mandrel with two
measuring levels, hard chrome-plated incl. wooden box, 1.5 m hose and
quick-change couplings
|
|
Form A / B |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-A 32/B 40 |
|
310-2240-004095 |
|
HSK-A 40/B 50 |
|
310-2240-004094 |
|
HSK-A 50/B 63 |
|
310-2240-004060 |
|
HSK-A 63/B 80 |
|
310-2240-004061 |
|
HSK-A 80/B 100 |
|
310-2240-004062 |
|
HSK-A 100/B 125 |
|
310-2240-004063 |
|
HSK-A 125/B 160 |
|
310-2240-004756 |
|
HSK-A 160 |
|
310-2240-004757 |
|
|
|
|
|
Form E / F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
310-2240-004822 |
|
HSK-E 32 |
|
310-2240-004823 |
|
HSK-E 40/F 50 |
|
310-2240-004824 |
|
HSK-E 50/F 63 |
|
310-2240-004825 |
|
HSK-E 63/F 80 |
|
310-2240-004826 |
|
|
Master Ring for Taper Air-jet
Mandrel
|
|
|
Master taper with calibration step,
gauge steel, age-hardened and certified, together with air-jet mandrel in wooden
box
|
|
Form A / B |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-A 32/B 40 |
|
405-0009-004097 |
|
HSK-A 40/B 50 |
|
405-0009-004096 |
|
HSK-A 50/B 63 |
|
405-0009-004064 |
|
HSK-A 63/B 80 |
|
405-0009-004065 |
|
HSK-A 80/B 100 |
|
405-0009-004066 |
|
HSK-A 100/B 125 |
|
405-0009-004067 |
|
HSK-A 125/B 160 |
|
405-0009-004758 |
|
HSK-A 160 |
|
405-0009-004759 |
|
|
|
|
|
Form E / F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
405-0009-004827 |
|
HSK-E 32 |
|
405-0009-004828 |
|
HSK-E 40/F 50 |
|
405-0009-004829 |
|
HSK-E 50/F 63 |
|
405-0009-004830 |
|
HSK-E 63/F 80 |
|
405-0009-004831 |
|
|
|
|

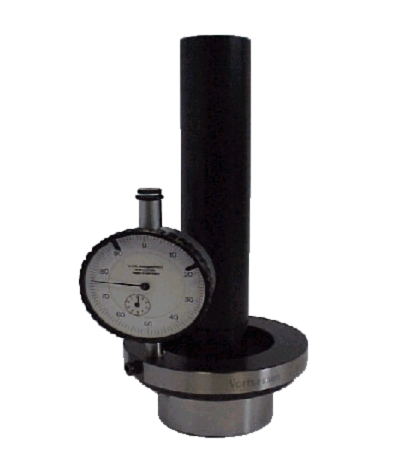

Pre-measuring Device for the Flange Contact Surface
(mechanical)
|
|
|
|
|
Pre-measuring device for measuring the flange contact surface including
dial indicator and wooden box;
dial indicator certificate
optional
NOTE: Pre-setting of the pre-measuring
device with gauge blocks (not included). No separate master gage
offered. |
|
Form
A/B/E/F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
800-0000-004817 |
|
HSK-A 32/B
40/E 32 |
|
800-0000-004713 |
|
HSK-A 40/B 50/E 40/F
50 |
|
800-0000-004714 |
|
HSK-A 50/B
63/E 50/F 63 |
|
800-0000-004715 |
|
HSK-A 63/B 80/E 63/F
80 |
|
800-0000-004716 |
|
HSK-A 80/B
100 |
|
800-0000-004717 |
|
HSK-A 100/B 125 |
|
800-0000-004718 |
|
HSK-A
125/B160 |
|
800-0000-004777 |
|
HSK-A 160 |
|
800-0000-007195 |
|
Dial
indicator certificate |
|
800-0001-00000 |
|
|
L9 Dimension Measuring Device
(mechanical)
|
|
|
Clamping shoulder measuring device incl. master gauge,
dial indicator and wooden box;
dial indicator certificate
optional
|
|
Form A / B / E /
F |
|
|
|
Flange Dia. |
|
Part No. |
|
HSK-E 25 |
|
800-0009-009293 |
|
HSK-A 32/B 40/E
32 |
|
800-0009-007382 |
|
HSK-A 40/B 50/E 40/F 50 |
|
800-0009-007383 |
|
HSK-A 50/B 63/E 50/F
63 |
|
800-0009-007384 |
|
HSK-A 63/B 80/E 63/F 80 |
|
800-0009-007385 |
|
HSK-A 80/B 100 |
|
800-0009-007386 |
|
HSK-A 100/B 125 |
|
800-0009-007387 |
|
HSK-A 125/B 160 |
|
800-0009-009294 |
|
HSK-A 160 |
|
800-0009-009295 |
|
|
|
|
|
Description |
|
Part No. |
|
Dial indicator certificate |
|
800-0001-000000 |
Attributes: L9 at d3
|
|
|
|
|
