FEATURES
AND
ADVANTAGES
|
|
|
Microprocessor Controlled |
|
|
Compact Appearence |
|
|
Design
for
User's
convenience
|
|
|
UV intensity of High density |
|
|
Economic and reasonable price |
|
|
LCD Display |
|
|
Easy lamp exchange |
|
|
Run time integration of UV lamp |
|
|
Turn On times integration of UV lamp |
|
|
Adjustable of UV intensity ( 0 ~ 100%) |
|
|
Shutter Open / Close by foot switch |
|
|
RS-232 Serial communication (Option) |
|
|
Working mode memorization and auto-return |
|
|
Automatic / Manual / Pulse Mode |
|
|
External
Interface
for PLC
or Industrial
PC |
|
|
CE
Approval |
|
SPECIFICATION
|
|
UV Lamp |
100W High Pressure Short Arc Mercury Lamp |
|
Control |
Microprocessor controll |
|
Lamp life time |
1.000 ~ 1,500
Hours (typical) |
| UV
Intensity |

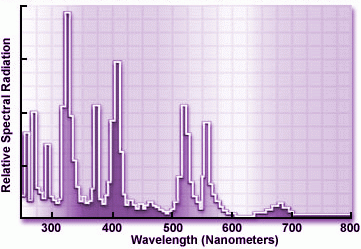

Approx. 5,000 mW/Cm2
@365
nm peak
wavelength |
| Light
guide |
Dia. 5 mm x 1 m Liquid Light Guide (1
Branch) |
| Output |
Approx. 7,000 mW/Cm2
(250
~ 500
nm range) |
|
Warming Up |
2 Minute |
|
Operation Mode |
Auto Mode -- Manual Mode -- Pulse Mode
-- Operation
Time
-- Turn
On Times
-- Timer
Set
Mode |
|
Option |
1
Br.
/ 2
Br,
5 mm
/ 3
mm Light
guide
|
|
Power
Supply |
Microprocessor
controlled
|
|
Intensity
Control |
Mechanical
shutter
type
(0 ~
100%)
|
|
Lamp
On/Off |
The
lamp
is On
and
Off
seperately
with
main
power
|
|
Power
input |
Free
Voltage
100
~ 230
V, 50/60
Hz
|
|
Dimension |
280
(H)
x 210
(W)
x 270
(D)
mm
|
|
Weight게 |
8
Kg
|
|
Safety |
Automatic
power
off
feature
when
cover
opened
or
overheated
during
system
operation
|
| Remote
control |
Remote control and monitoring by RS-232C Serial
communication
(Option) |
