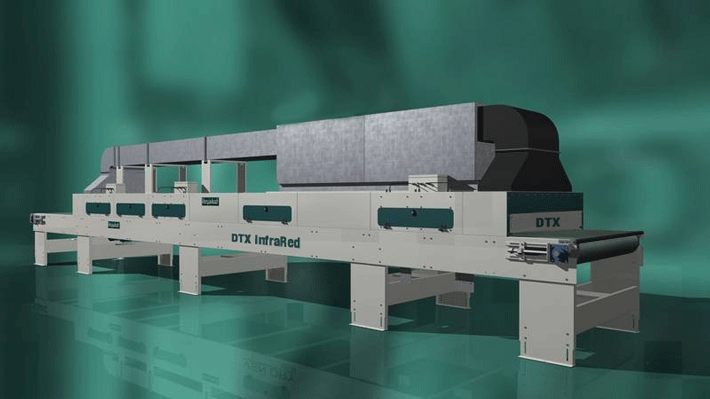

HIGH EFFICIENCY MIR DRYING SYSTEM

SYSTEM SPECIFICATIONS

1) MIR Drying System : Module Type “M”

2) MIR Drying System : Chamber Type “C”

3) MIR Drying System : Door Type “D”

4) Model Selection

Description		Model (Size)
Description		MS 3054 H	MS 6053 H	MS 9108 H	MS 12063 C	MS 21063 C	Remark
Module & System Housing
System Dimension	Length (L) mm	5000	5000	10000	6000	6000
	Width (W) mm	1070	1070	1070	1000	1000	Module Type
	Height (H) mm	1350	1350	1350	1350	1350
	Conveyor (Hc) mm	800	800	800	800	800
Module Height Adjustment		Optional	Optional	Optional	Optional	Optional
Conveyor Speed (m/min)		0 ~ 5	0 ~ 5	0 ~ 5	0 ~ 5	0 ~ 5
Conveyor Material		Teflon / SUS	Teflon / SUS	Teflon / SUS	Teflon / SUS	Teflon / SUS	Mesh Belt
Conveyor Centering Adjustment Unit		Optional	Optional	Optional	Optional	Optional
Absorption System		Optional	Optional	Optional	Optional	Optional
Anti-Static Electricity Unit		Optional	Optional	Optional	Optional	Optional

Module Quantity		4	3	8	3	3
Module Type	Model	MS3-6	MS6-13	MS9-19	MS12-13	MS21-25
	Length (L) mm	1070	1070	1070	1000	1000
	Width (W) mm	200	400	900	500	500
	Height (H) mm	350	350	350	350	350
Lamp Array		Horizontal	Horizontal	Horizontal	Horizontal	Horizontal
Housing Material (SUS / Steel)		○	○	○	○	○
Actual Drying Width		600	600	600	800	800
MIR Lamp	Heating Length (mm)	700	700	700	350	350
	Overall Length (mm)	850	850	850	500	500
	Lamp Wattage (W)	2100	2100	2100	1050	1050
	Wattage / Cm (W/Cm)	30 W/Cm
	Lamp Voltage (V)	110	110	110	55	55
Module Capacity	Lamp Quantity (EA)	3	6	9	12	24
	Module Capacity (kW)	6.3	12.6	18.9	12.6	25.2
	Power Input	220V, 3P	220V, 3P	220V, 3P	220V, 3P	220V, 3P
Exhaustion		N/A	N/A	N/A	N/A	N/A
Air Cooling		○	○	○	○	○
Reflector (SUS / Aluminum)		○	○	○	○	○
Non-Explosion structure (Optional)		N/A	N/A	N/A	N/A	N/A

Remark

1. The array method for MIR Lamps could be apply according to customer’s requested configuration or suggestion.

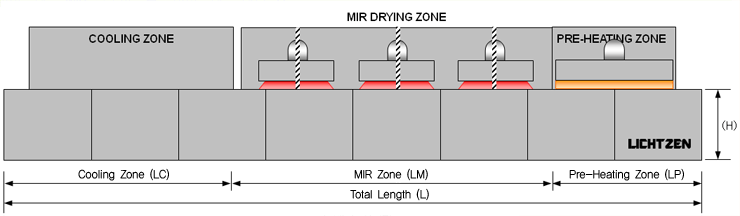

2. System Length = Variable, System Width : (Chamber type = Module length + 300 mm), (Module type = Module length),
System Height = 800 mm + variable.

Power Supply
Input Power		AC220V, 1P/3P , 60 Hz
SCR	Model	LT-2030A	LT-2050A	LT-2075A	LT-2030A	LT-2050A
	Capacity (A)	30A	50A	75A	30A / 30A	50A / 50A
	Quantity (Ea)	4	3	8	3/3	3/3
Module Zone control		○	○	○	○	○
Heating Zone control		1 Zone	1 Zone	1 Zone	3 Zone	3 Zone
Control Interface	Control Signal (External -> Unit)	Remote (External) control and monitoring by PLC or Automation system (5 ~ 24V contact)
		Lamp On command
		Lamp On command
		Power Output Control (0 ~ 100)
	Status Signal (Unit -> External)	Lamp lit on signal
		Lamp lit on fail signal
		Cooling fan error signal
		Over temperature error signal
		Over current signal
Operation		Auto / Manual
HMI (Human Machine Interface)		Touch Screen					Optional
Dimension		TBA	TBA	TBA	TBA	TBA
Box Material		Stainless Steel or Steel					Optional
Weight		TBA	TBA	TBA	TBA	TBA
Non-Explosion structure (Optional)		TBD	TBD	TBD	TBD	TBD	Optional

Notice

1. Above specification can be changed without notification for our quality improvement.
2. Except for above specification, it could be manufacture according to customer’s requirements.

Model Selection

Description		Model (Size)
Description		MS 9158 H	MD 6158 H	MS 12103 H	MS 24156 H	Remark
System
System Dimension	Length (L) mm	15000	15000	10000	13000
	Width (W) mm	1370	2120	1300	1300	Chamber Type
	Height (H) mm	1350	1350	1350	1350
	Conveyor (Hc) mm	800	800	800	800
Module Height Adjustment		Optional	Optional	Optional	Optional
Conveyor Speed (m/min)		0 ~ 5	0 ~ 5	0 ~ 5	0 ~ 10
Conveyor Material		Teflon / SUS	Teflon / SUS	Teflon / SUS	Teflon / SUS	Mesh Type
Conveyor Centering Adjustment Unit		Optional	Optional	Optional	Optional
Absorption System		Optional	Optional	Optional	Optional
Anti-Static Electricity Unit		Optional	Optional	Optional	Optional
